Brower Propulsion Laboratory




MANUFACTURE OF CUP HOLDER FOR PORTABLE MISSION CONTROL UNIT, CONTINUED

6.  Deburr piece per Deburring Procedure, Document 0015.

7.  Cut an oversized length of MS-0063-15 aluminum hinge.

8.  Lay out three #28 holes on bottom leg of hinge and drill through.

9.  Align holes on Cup Holder block and spot.  Drill and tap three holes for #6-32 screws, #36 drill, .750” deep.  Countersink with 82° bit.

10. Join hinge to block with three #6 SS oval head machine screws.

11. Align block to 1.00” distance from right edge of Top Work Surface.  Drill three #28 holes through hinge and panel 3.

12. Attach cup holder with hinge to panel 3, using 1” SS button head machine screws, washers and locknuts.

13. After checking fit, remove unit and mill hinge to block length minus .063” on left and right sides.  Leave pin to block length, and replace unit on panel 3, per step 12.

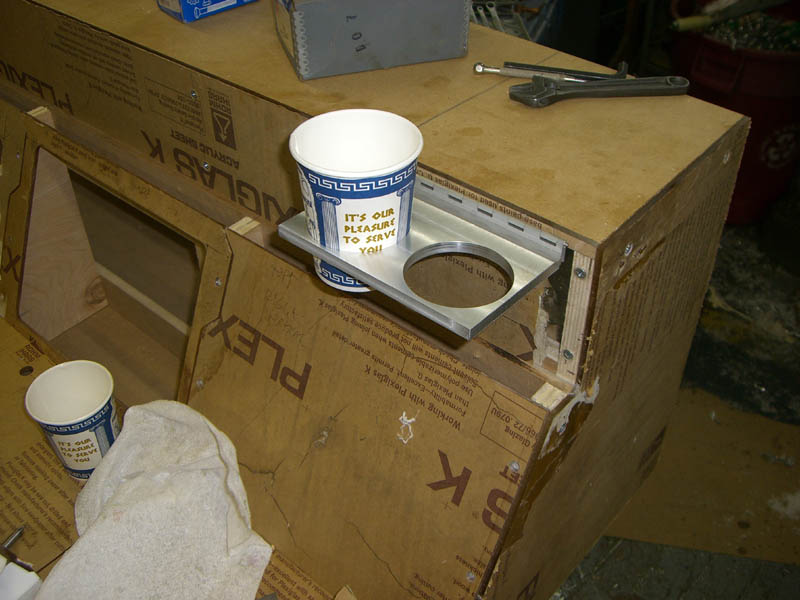

14. Finish per specification 005, and test unit with two cups of coffee, then two cups of Tang.  Flip unit back and forth repeatedly.  Try out different cups.  Place 4 lb. calibrated test weight on unit, then check for stress cracks or bending.
(continued)
MANUFACTURE OF CUP HOLDER FOR PORTABLE MISSION CONTROL UNIT
MANUFACTURE OF CUP HOLDER FOR PORTABLE MISSION CONTROL UNIT, CONTINUED

6. Deburr piece per Deburring Procedure, Document 0015.

7. Cut an oversized length of MS-0063-15 aluminum hinge.

8. Lay out three #28 holes on bottom leg of hinge and drill through.

9. Align holes on Cup Holder block and spot. Drill and tap three holes for #6-32 screws, #36 drill, .750” deep. Countersink with 82° bit.

10. Join hinge to block with three #6 SS oval head machine screws.

11. Align block to 1.00” distance from right edge of Top Work Surface. Drill three #28 holes through hinge and panel 3.

12. Attach cup holder with hinge to panel 3, using 1” SS button head machine screws, washers and locknuts.

13. After checking fit, remove unit and mill hinge to block length minus .063” on left and right sides. Leave pin to block length, and replace unit on panel 3, per step 12.

14. Finish per specification 005, and test unit with two cups of coffee, then two cups of Tang. Flip unit back and forth repeatedly. Try out different cups. Place 4 lb. calibrated test weight on unit, then check for stress cracks or bending.
(continued)
